M10 GPS

M10 GPS

$ 43.99

$ 0.00

Save: $

Connector Type:
  • Standard
  • Secondary GPS
  • For Pix32 & Pixhawk 1/2.4.6/2.4.8
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Overview

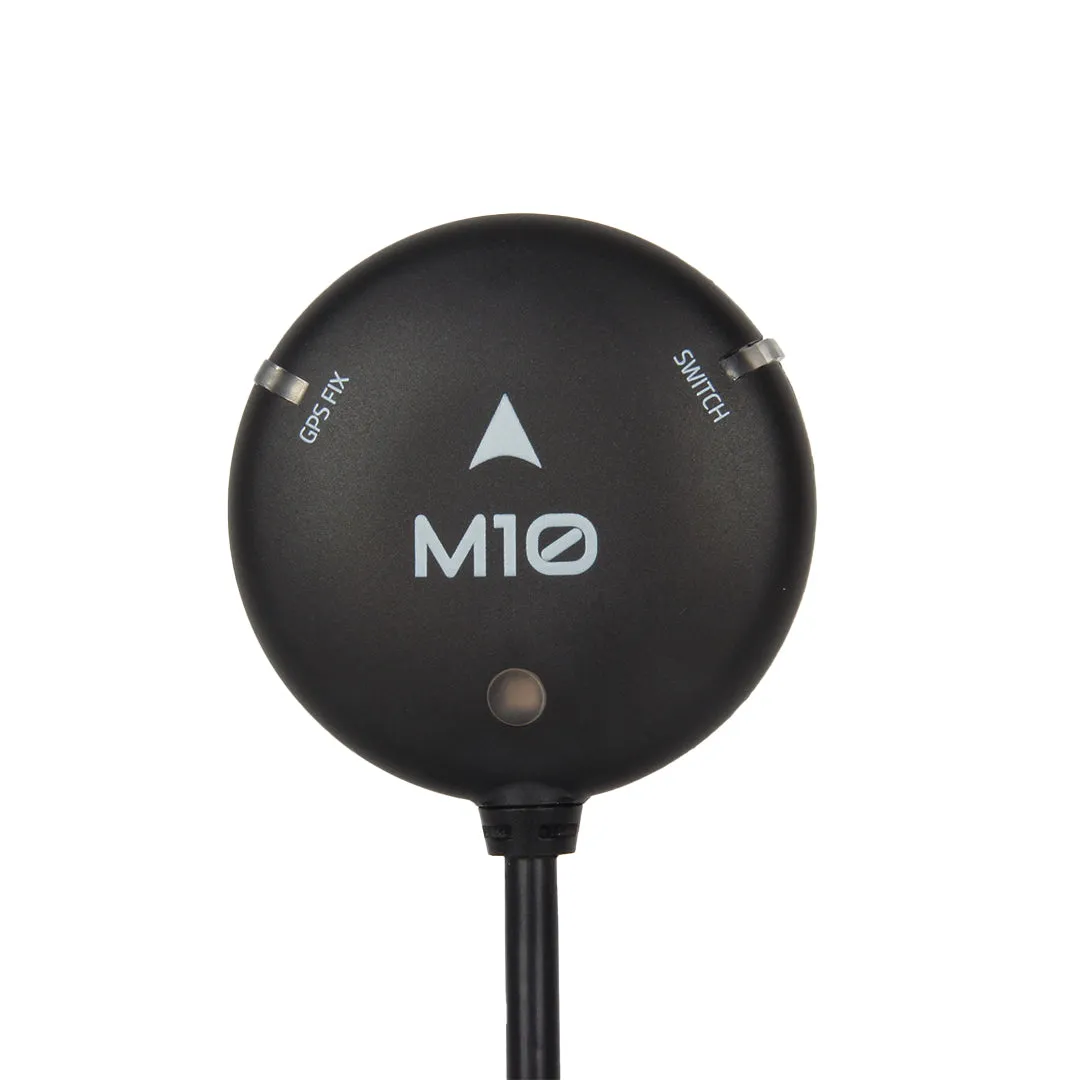

The M10 GPS uses multi-constellation GNSS powered by the u-blox M10 series, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connector options for different purposes. This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.

High-Speed Drone GPS Comparison

This blog post put the Holybro M10, M9N, F9P, and Matek M10Q to an ultimate test to determine which GPS units could keep pace with a high-speed drone in acro mode while ensuring precision during RTL and autonomous missions.

Features

  • Newest Ublox 10th Gen GNSS
  • Fast & Accurate Positioning
  • High-gain 25*25*4mm antenna
  • IST8310 Compass
  • Internal Buzzer, Safety switch
  • Ultra Bright UI RGB LED

Specification

 Holybro M10 GPSHolybro M9N GPS
GNSS ReceiverUblox M10Ublox M9N
Number of Concurrent GNSSUp to 4 GNSSUp to 4 GNSS
BeiDouBeiDou
GalileoGalileo
GLONASSGLONASS
GPSGPS
QZSSQZSS
Frequency BandGPS L1GPS L1
Galileo E1Galileo E1
GLONASS L1GLONASS L1
BeiDou B1BeiDou B1
SBAS L1SBAS L1
QZSS L1QZSS L1
CompassIST8310IST8310
Output ProtocolUBX (U-blox)UBX (U-blox)
NMEANMEA
Accuracy2.0m CEP1.5m CEP
Nav. Update Rate Up to 25 Hz (single GNSS),Up to 25 Hz (4 concerrent GNSS)
Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation SystemEGNOS, GAGAN, MSAS and WAASEGNOS, GAGAN, MSAS and WAAS
QZSS: L1SQZSS: L1S
Default Baud Rate115200115200
Input Voltage 4.7-5.2V4.7-5.2V
Connector Type
JST-GH-10pin
JST-GH-6pin
Molex 1.25mm 6pin & 4pin & 3pin
Antenna25 x 25 x 4 mm ceramic patch antenna
Antenna Gain1.5dbi
Antenna LNA Gain22dB
Power consumptionLess than 200mA @ 5VLess than 200mA @ 5V
Operating Temperature-40~80℃-40~80℃
Dimensionφ50 x14.4 mmφ50 x14.4 mm
Weight32g 32g
Cable Length26cm (42cm cable purchase separately)26cm (42cm cable purchase separately)
OtherTri-color LEDTri-color LED
Onboard BuzzerOnboard Buzzer
Safety SwitchSafety Switch
LNA MAX2659ELT RF AmplifierLNA MAX2659ELT RF Amplifier
Rechargeable Farah capacitanceRechargeable Farah capacitance
Low noise 3.3V regulatorLow noise 3.3V regulator

Note

  • PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.
  • The Status LED driver has changed. This LED is supported in PX4 1.14, ArduPilot 4.4.0 & later. (More info)

PIN MAP

Note: For Ardupilot user, if you are unable to perform normal compass calibration "compass dance" for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation.

Difference between the three cable options

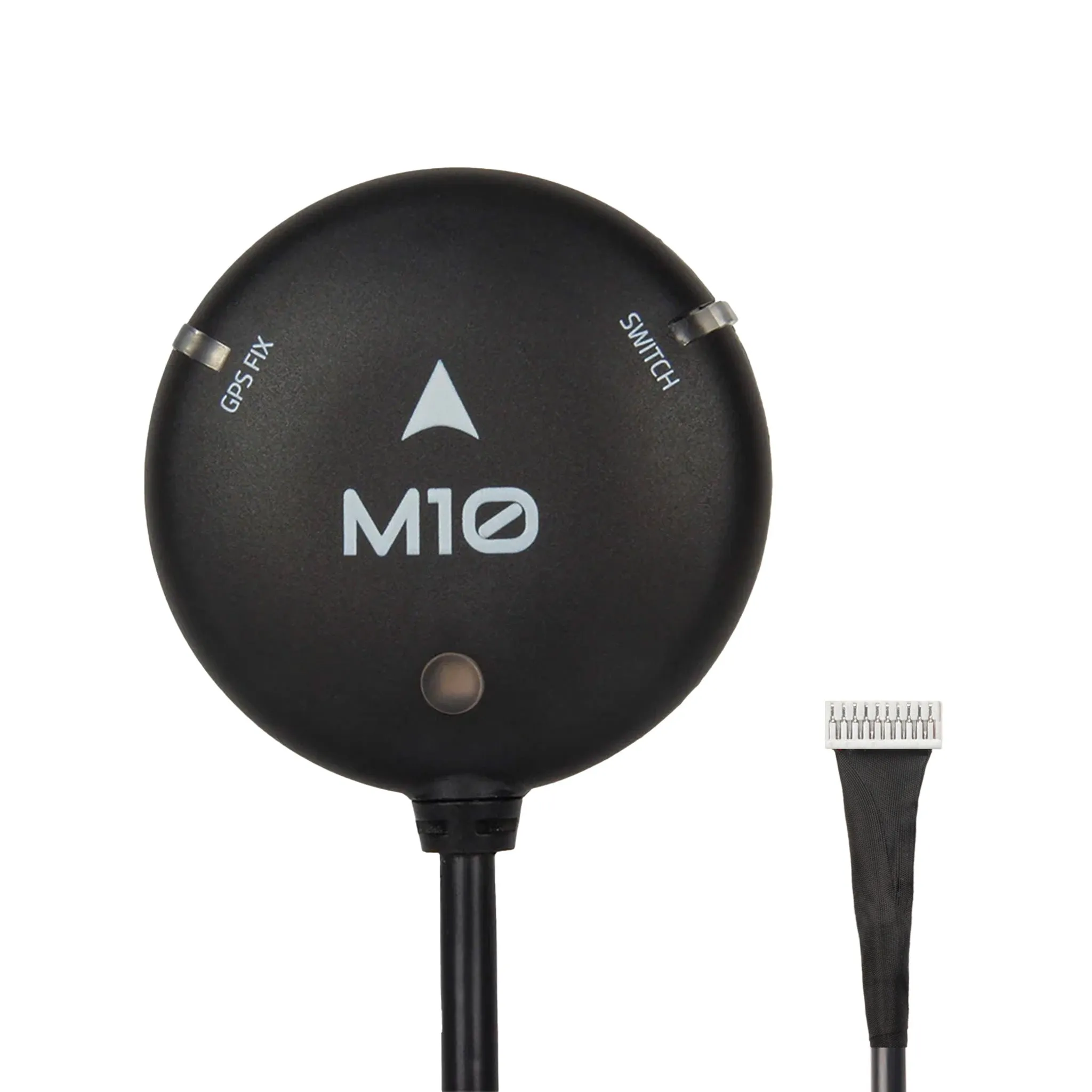

SKU12040 - Holybro M10 GPS (JST GHR1.25mm 10pin cable):

  • This option is the most common, it is used on the This connector can be used on Pixhawk Standard Flight Controller 10-pin “GPS Module” or "GPS1" input port.

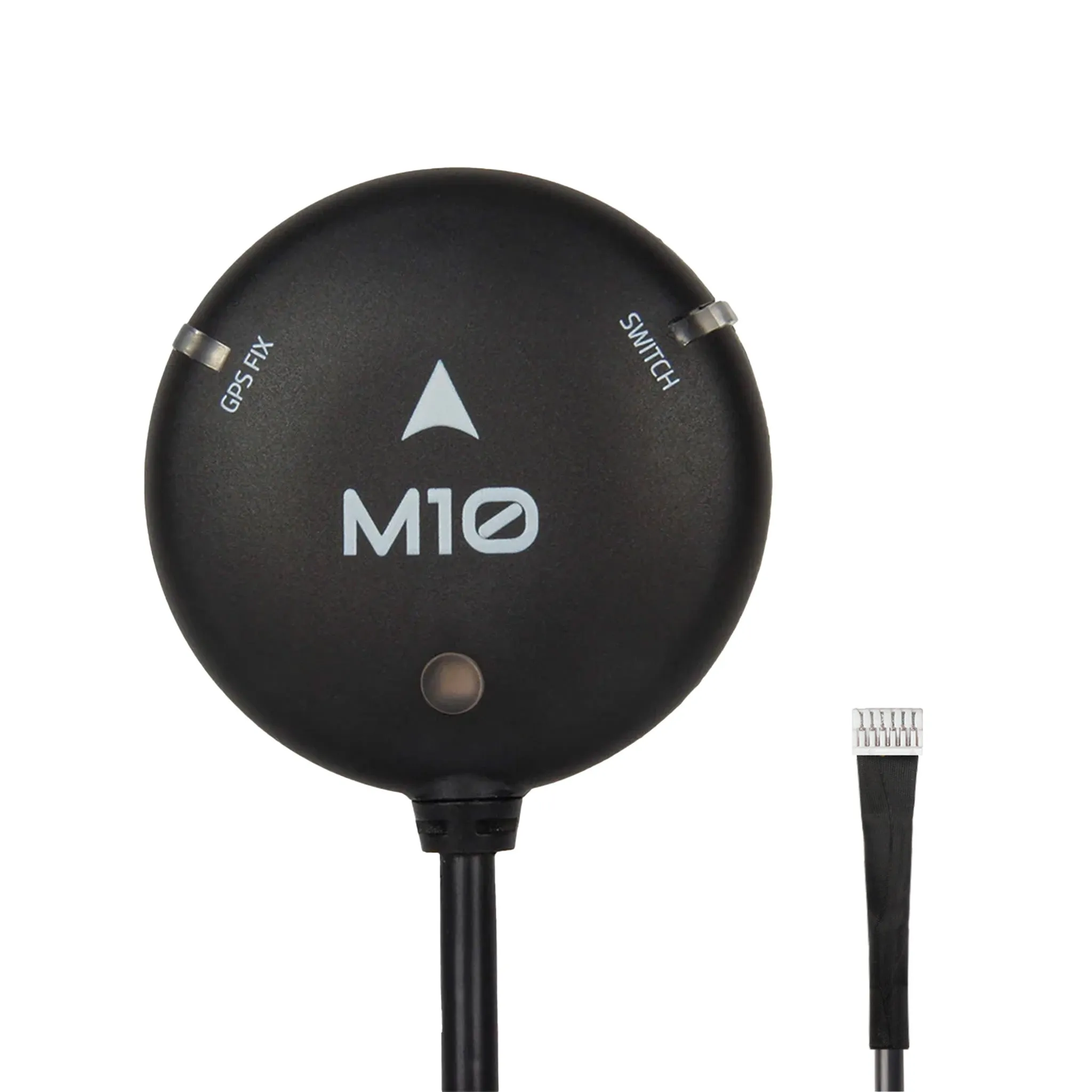

SKU12042 - Holybro M10 Secondary GPS (JST GHR1.25mm 6pin cable):

  • This connector can be used on Pixhawk Standard Flight Controller 6-pin“UART & I2C” or "GPS2" input port as a secondary GPS. This GPS is also compatible with the Cube Flight Controller GPS2 Port.

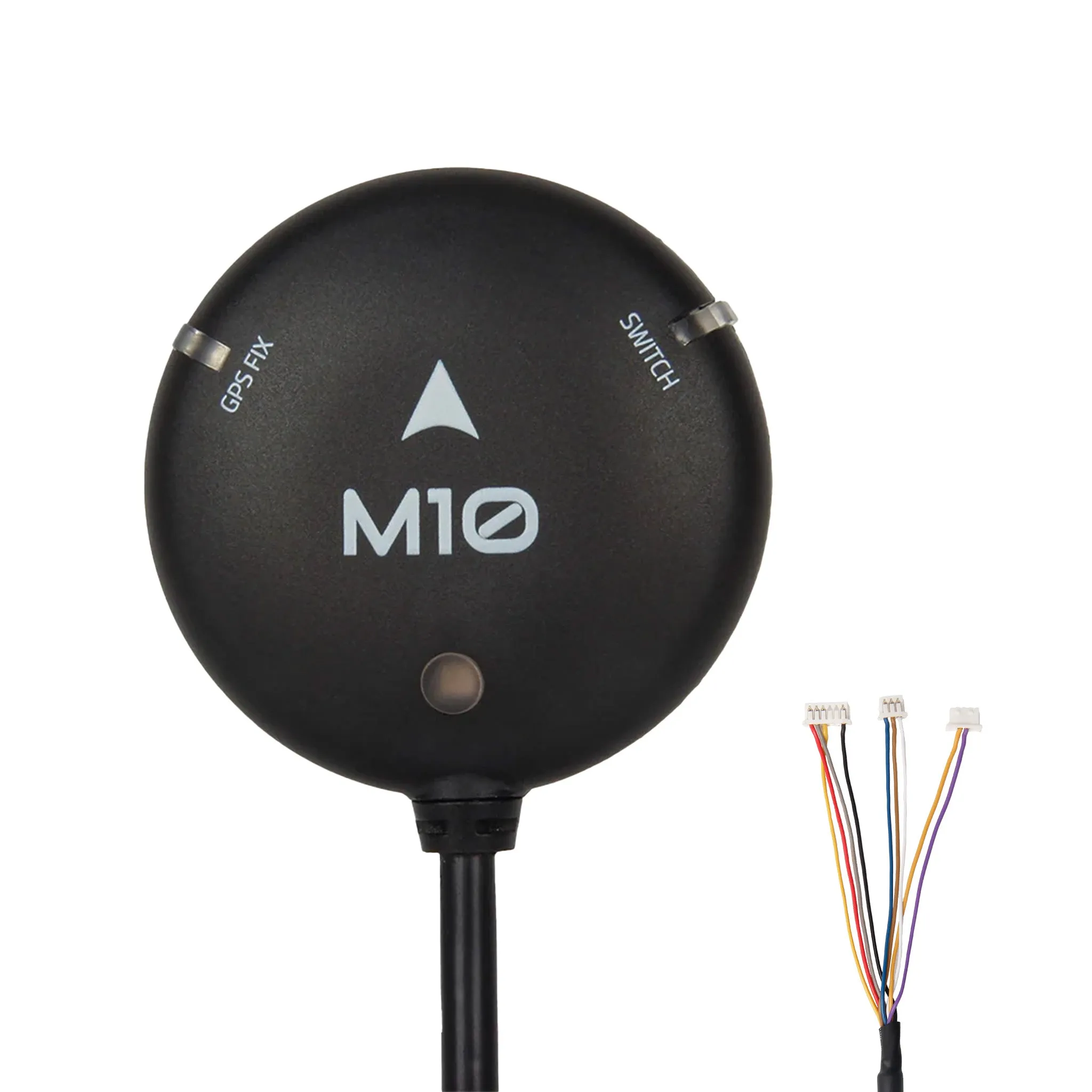

SKU12041 - Holybro M10 GPS for Pix32 & Pixhawk1/2.4.6/2.4.8 (Molex1.25mm 6pin & 4pin &3pin cable):

  • These connectors are for "Switch", "GPS", and "I2C" input ports on the Pix32/Pixhawk1/Pixhawk 2.4.6/2.4.8

Reference Link:

  • Holybro Documentation
  • Ardupilot IST8310 Compass Orientation
  • Dimension
  • 3D CAD File Downloads

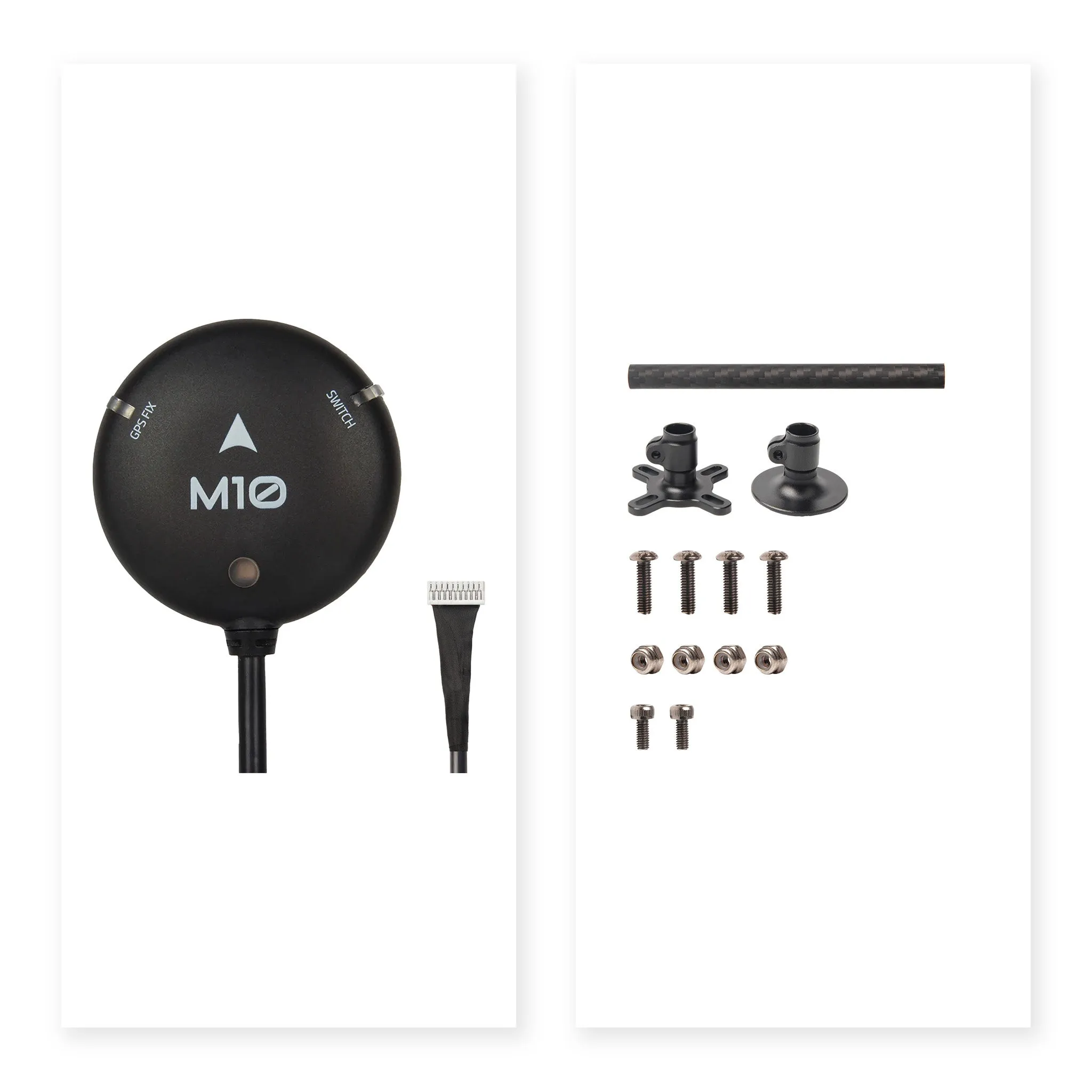

Package Includes:

  • 1x M10 GPS Module

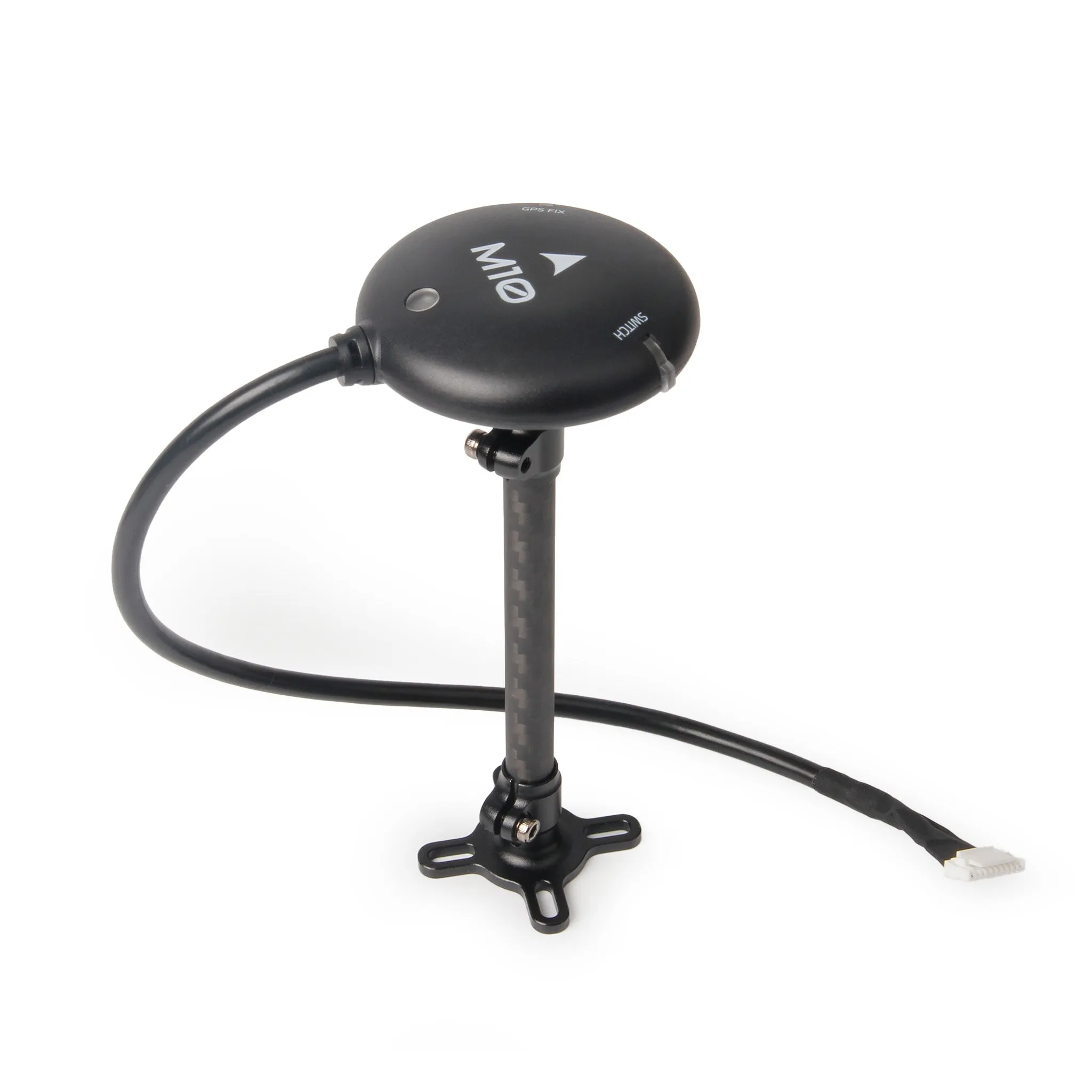

  • 1x Fixed Carbon Fiber GPS mount

Spare Parts & Accessories

  • GPS Extended Length Cable
