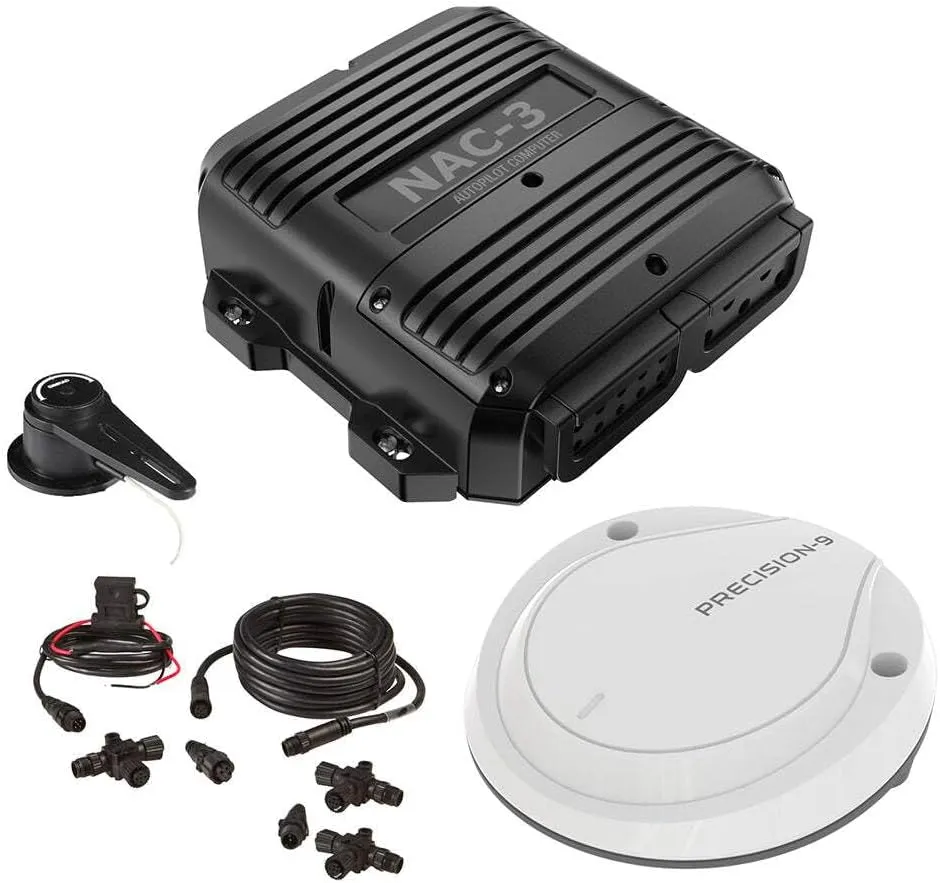

NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter KitComprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).Precision-9 CompassThe Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.RF25N NMEA2000RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cableN2k Backbone Starter KitNMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminatorsSpecifications:Temperature, operation: 0 to 55°CTemperature, storage: -32 to 70°CProtection: IPx7Weight in Kg: 0.7kg, 1.6lbsDimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7,72" x 2.58"Mounting: BulkheadConstruction: PlasticColor: BlackCable inlet: Grommet (Spare Incl)Local Power supply: 12/24 V DC 10-30%NMEA 2000 Load Equivalent number (50mA): 1Reversible motor control of rudder: Max continious load 30A, peak 50A for 1sOn/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA
