- Noise figure On-chip LNA (M8M). Extra LNA lowest noise figure (M8N/Q)
- Anti jamming Active CW detection and removal. Extra onboard SAW band pass (M8N/Q)
- Memory ROM (M8M/Q) or Flash (M8N)
- Supported antennas Active and passive
- Odometer Travelled distance
Pixhawk 2.4.6 2.4.8 Mitoot M8N 8N 8M GPS High Precision GPS Built in Compass w/ Stand Holder APM AMP2.6 APM 2.8 APM2.8 Pixhawk 2.4.6 2.4.8
GPS/for QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav 167 dBm
Cold starts 148 dBm
Hot starts -156 dBm
Assistance Assist Now GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO M8NQ
Crystal M8M)
RTC crystal Built-In
Data-logger position, velocity, and time (-M8N)
Package Included:

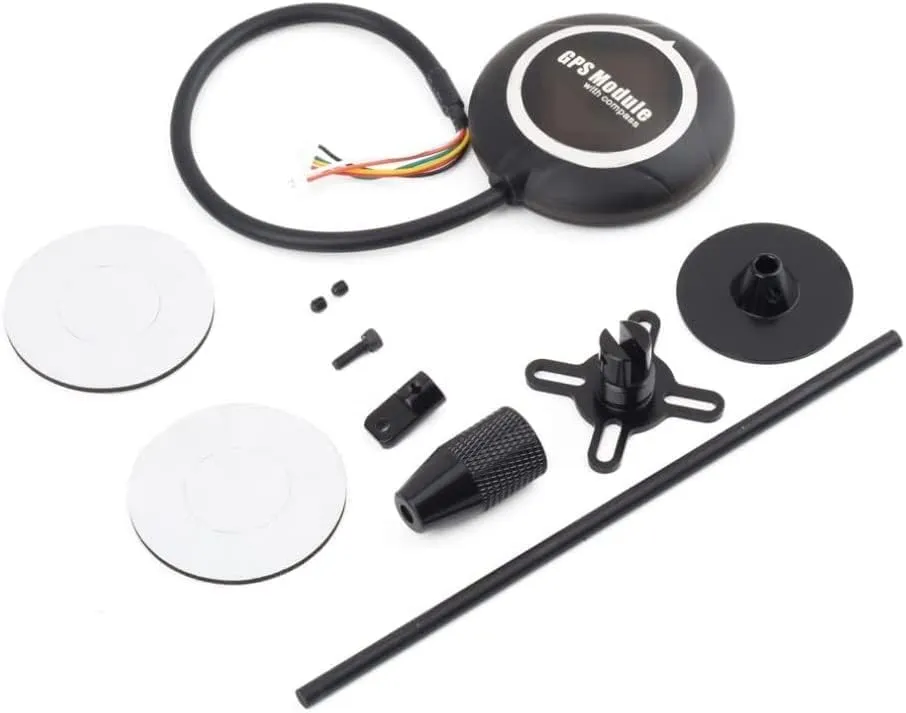

1 X M8N GPS Module(other installation accessories are included)
1 X Holder
