E4 Marked.

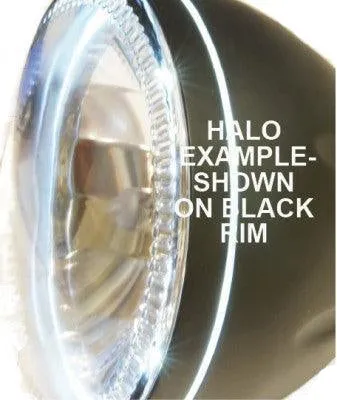

Their unique feature is an LED side light which illuminates the serrated outer edge of the glass and a thin separating ring between the rim and the bowl so it can be seen from the side.

The bowl has pressed dimple features, a regular bottom mounting bolt plus screws for side mounting brackets.

Overall diameter 146mm (5 ¾").

Front to back 140mm.

Overall height including mounting bolt 200mm.

Fly leads 100mm long with bullet connectors.

Single mounting bolt M10.

Side mount screws M6.

H4 bulb included.

WIRING:

GREEN - Earth -12v.

WHITE - Dip Beam.

BLUE - Main Beam.

BROWN - Side Light.

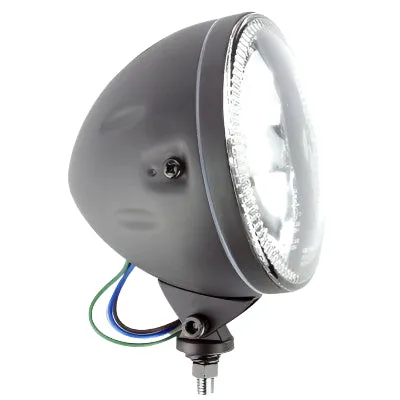

BLACK HALO RIM HEADLAMP #HL146BK
